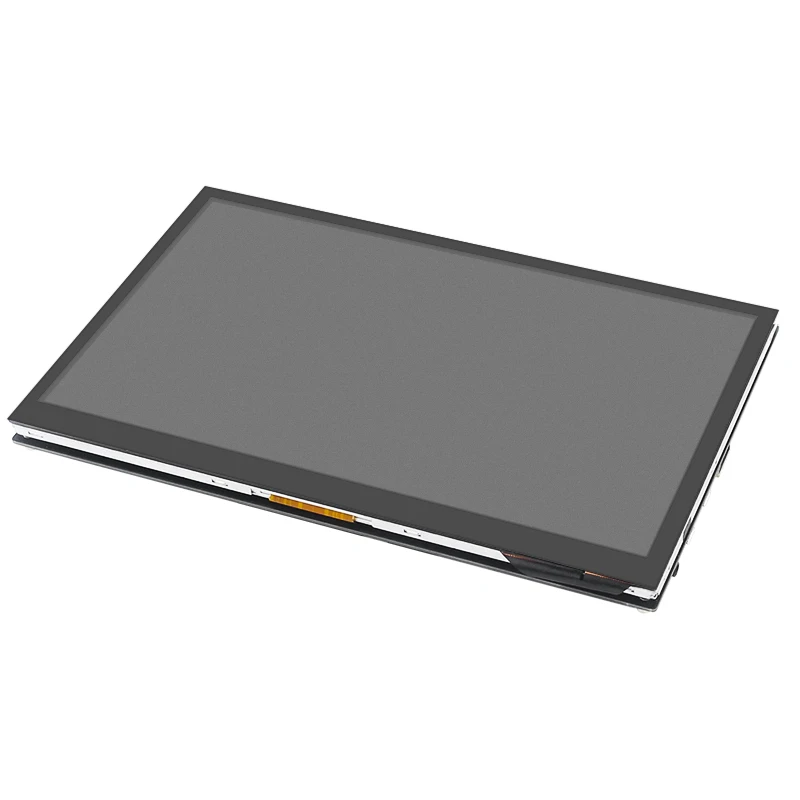

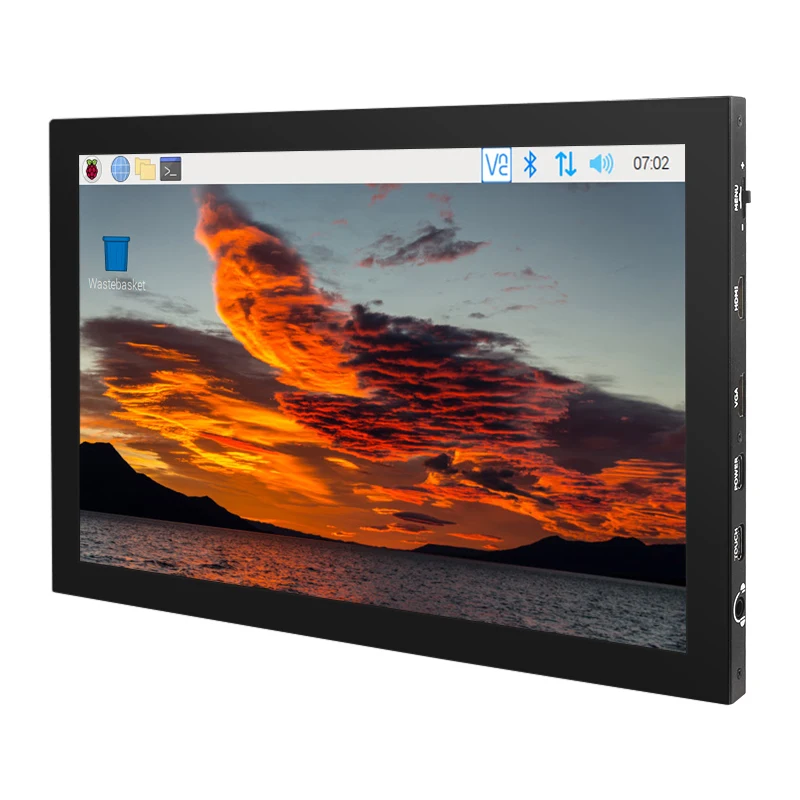

10.1 Inch LCD Raspberry Pi 4 IPS Capacitive Touch Screen 1024×600 or 1280×800 Display Optional Speacker Holder Monitor for Raspberry Pi 4/3 PC
1024×600 Screen (Option 1 )
This is the 10.1 inch 1024×600 touch screen for Raspberrry Pi and PC/miniPC. It is the IPS screen , with 2 speakers and 3.5mm audio interface. And there 2 pcs holder feet for using it more convenient.
Note: When you use it for Raspberry Pi 5, please use the 3B USB adapter and 4B micro HDMI-compatible adapter
Features
IPS full Angle display:
1. The viewing Angle is large
2.. True color
3. Dynamic picture quality is excellent
4. Energy saving and environmental protection
1024X600 hd vision :
1.Resolution for hd 1024X600 dot matrix
2. It is more delicate than 800X480 ordinary screen
Tempered glass touch panel:
Hardness up to 6H, more durable and more scratch resistant
External audio output interface
1. Stereo dual speaker output quality sound
2. 3.5mm external audio interface
Used as a mini PC monitor:
1. Support raspberry Pi, Banana Pi, BB Black and other mainstream development board
2. Support Raspbian, Kali Linux, ubuntu,single touch plug and play without driver.
Note: Please use our recommended system for touch screen. If you use other systems, it may not have touch function or may not work. You need to configure it yourself. Because there are many systems that the Raspberry Pi can use, we can’t make every system compatible with our touch screen.
Used as a computer display:
Support win10/win8/win7 system, support five-point touch plug and play driver
Used as a games monitor
Support Xbox360,PS4,Switch etc
Specifications
1. Screen Type: IPS screen
2. Screen Size: 10.1 inch
3. Resolution: 1024 x 600
4. Backlight adjustment: Switching and adjusting of dial switch
5. Volume adjustment: Switching and adjusting of dial switch
6. Touch Screen Type: Capacitive Touch Screen
7. Touch IC: GT9271
8. Power: MicroUSB（5V）
9. Speakers Power: 8Ω 2W
10. Video Input Interface: HDMI-compatible
11. Audio Output Interface: 3.5mm Audio Interface + Stereo dual speaker output
12. Module Size (L x W x H): 164.90 × 102.00 × (14.25±0.2)mm
13. Packaging Size (L x W x H) 295*195*70 (mm)
Product weight (including package) 900g approx
Key and Interface Function
① HDMI-compatible Interface: Input HDMI-compatible signal, using HDMI-compatible cable connection, commonly used to connect to the computer，The maximum supported resolution is 1920×1080
② Touch Interface: Transfer touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect computer
③ Power Interface: Connect to the power supply and use micro USB cable to connect. Only power supply function is provided
④ 3.5mm Audio Interface: Output audio signal, connect audio output device, such as headphones
⑤ Stereo speakers: Output audio signal for external playback of audio signal
⑥ Touch Interface: Transmit touch signal, connect with micro USB cable, provide touch and power supply function, commonly used to connect Raspberry Pi
⑦ HDMI-compatible Interface: Input HDMI-compatible signal, connect with HDMI-compatible adapter, only used to connect to the Raspberry Pi，The maximum supported resolution is 1024×600
⑧ Cooling Fan Interface: Connect cooling fan

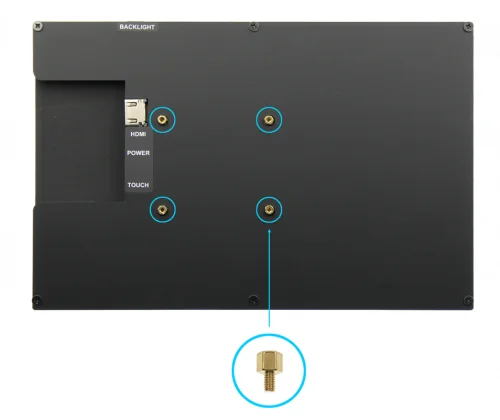

⑨ Copper x 8: Used to connect raspberry pie and scaffolds
⑩Wheel Switch: Used to adjust screen backlight brightness and volume. By default, in the volume adjustment state, up and down to adjust the volume + and -. Press the switch to switch to the backlight brightness adjustment state, up and down to adjust the backlight brightness increase and decrease respectively. The volume and backlight brightness adjustment state is switched by pressing the switch.

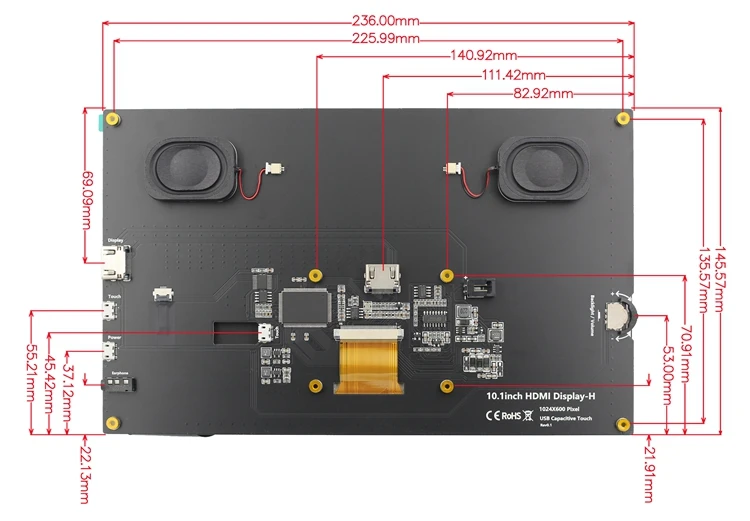

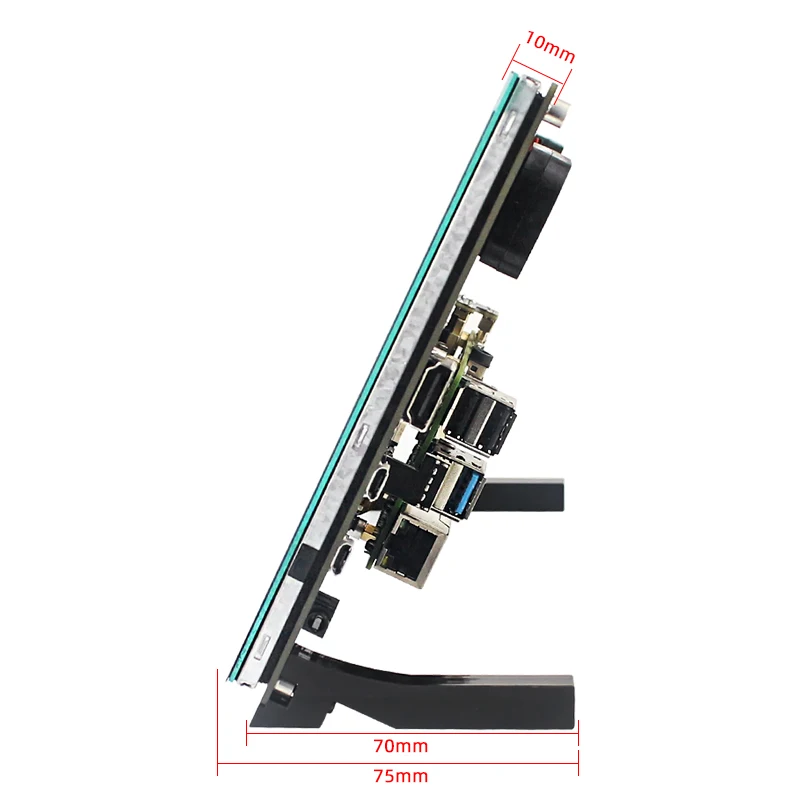

Product Size

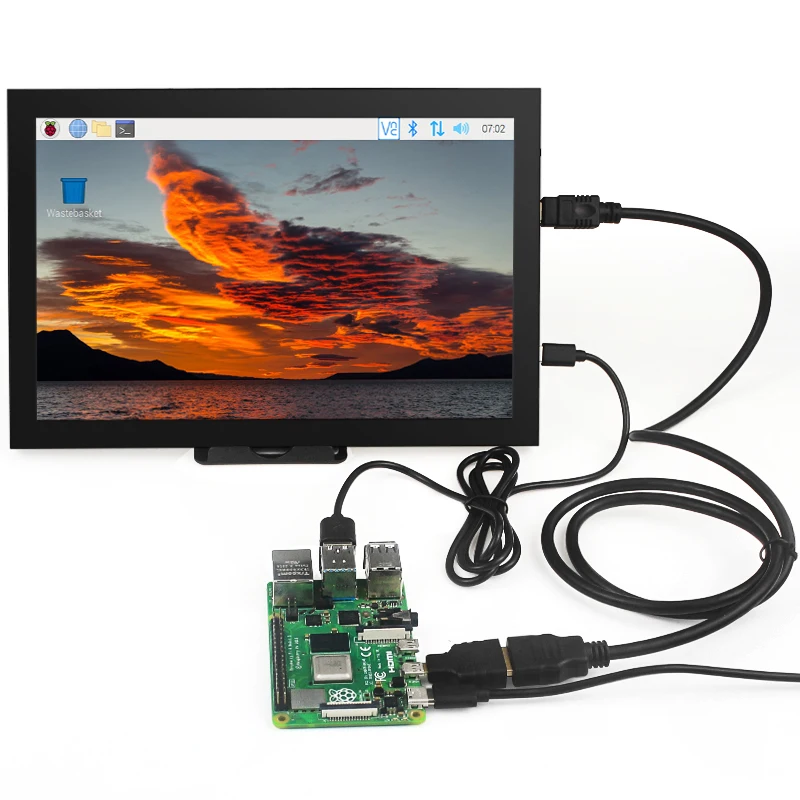

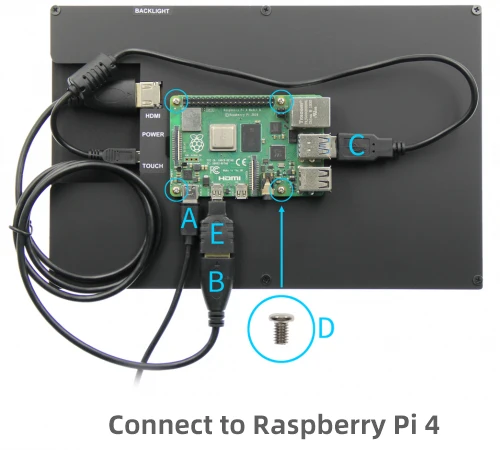

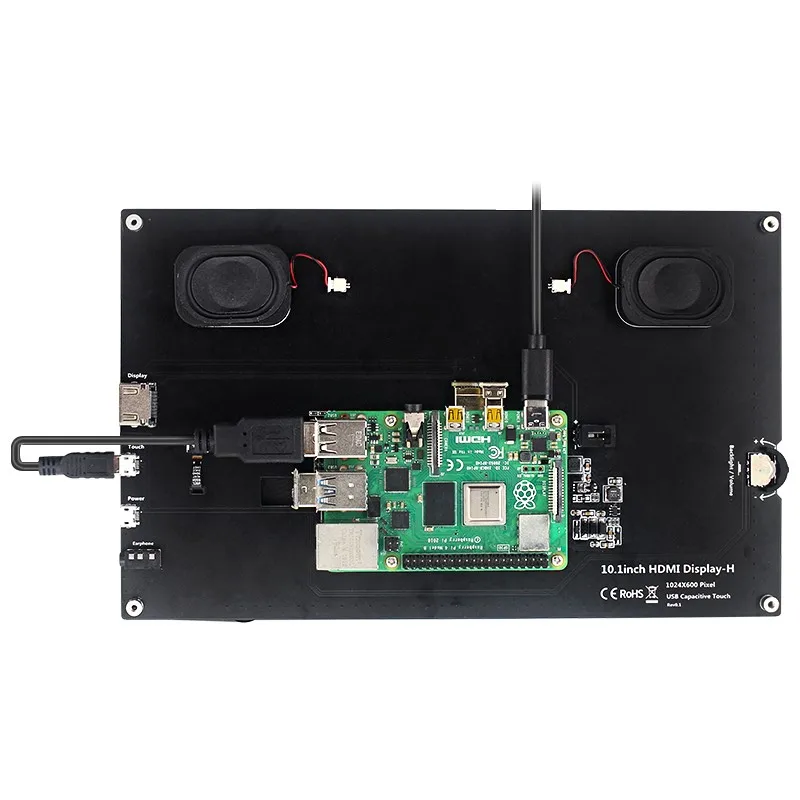

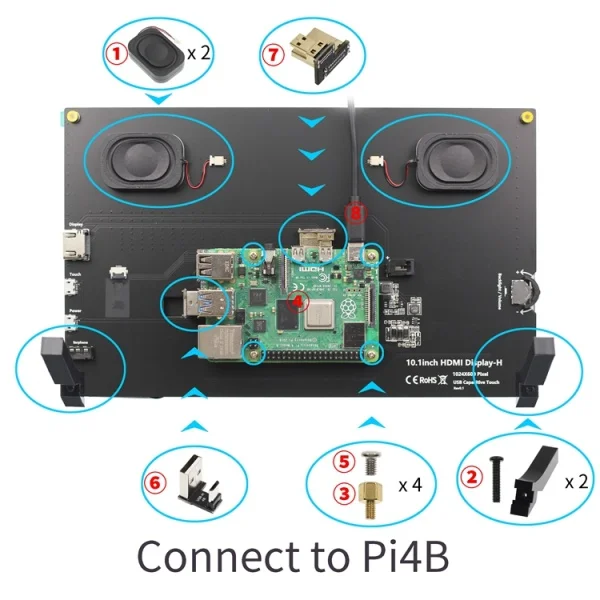

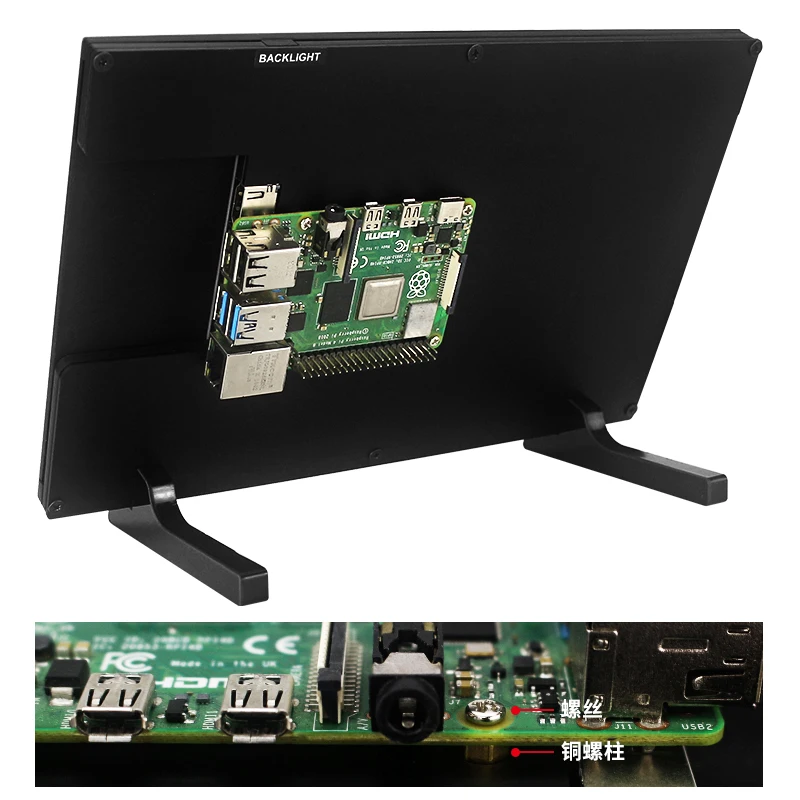

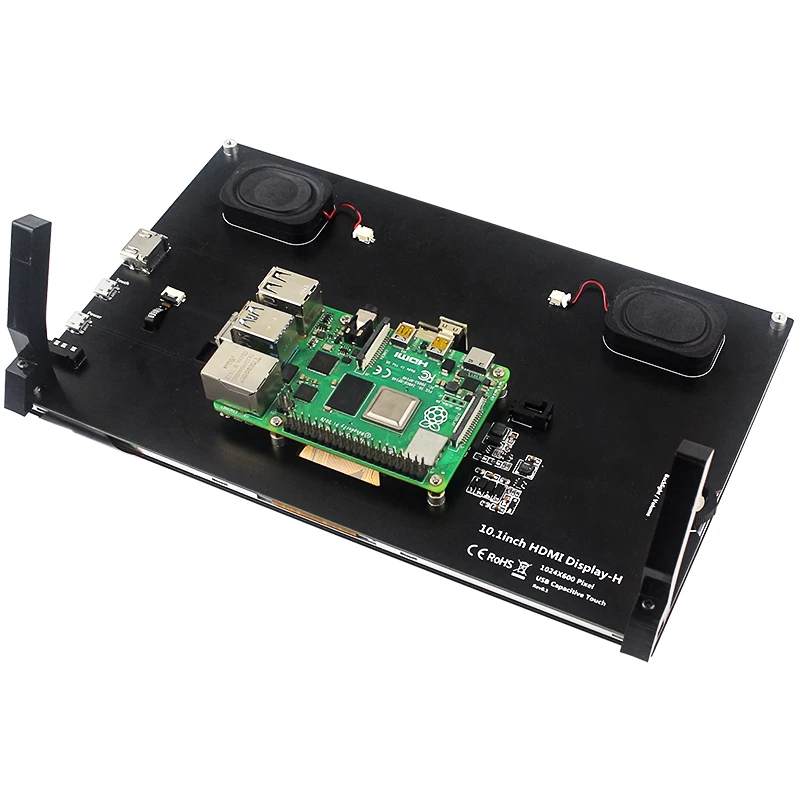

Use for Raspberry Pi 4

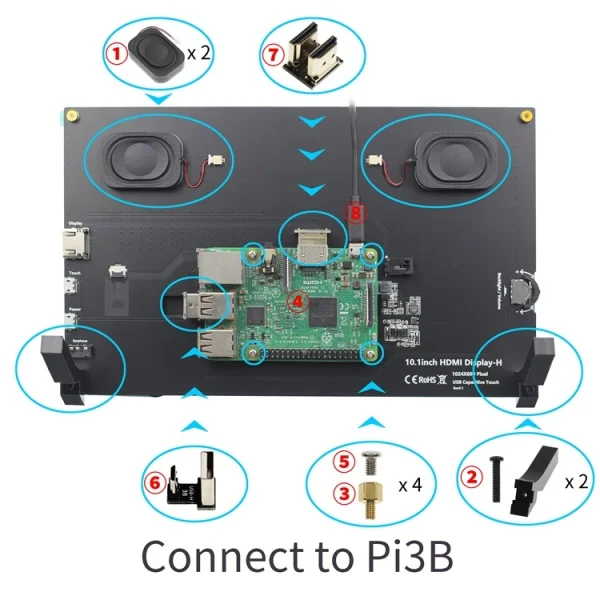

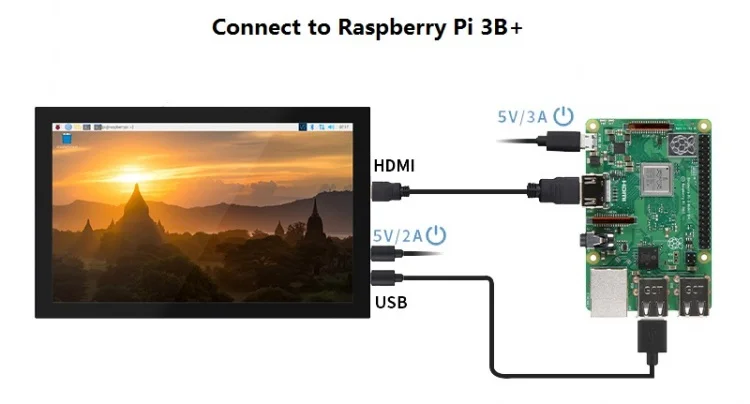

Use for Raspberry Pi 3B+/3B
Work as HDMI-compatible touch monitor
This product can be used as the HDMI-compatible touch monitor of Windows computer, only need to connect HDMI-compatible interface and TOUCH interface, can normally display and support up to five points touch.
How to Use
Please click following picture to get using manual
How to Assemble
//www.youtube.com/watch?v=IDHCtqgCZnY

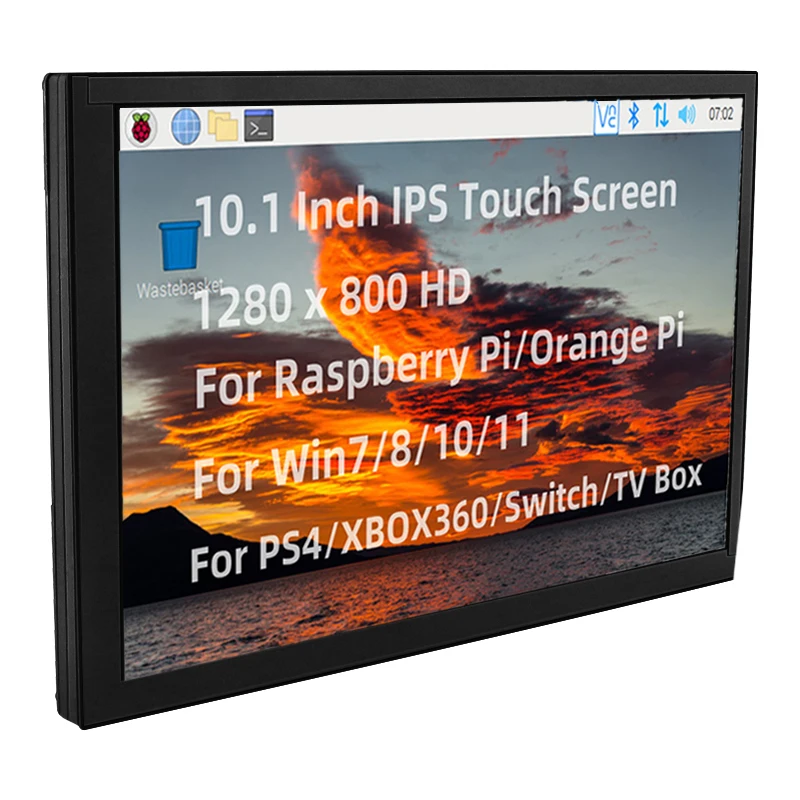

1280×800 Screen
This is the 10.1 inch HD touch screen, with 1280×800 resolution. It is IPS screen.
Features
10.1inch IPS full Angle display
○The viewing Angle is large
○true color
○picture quality is excellent
1280X800 resolution
○HD vision
○The display is very delicate
New touch panel
○Tempered glass cover
○Hardness up to 6H, more durable and more scratch resistant
High sensitivity capacitive touch screen
○Accurate touch
○Support up to 10 touch points
HDMI-compatible interface
○HD input
○Can be used as HDMI-compatible display
Support multiple device access
○Can be connected to mainstream development boards such as raspberry pie, banana PI and BB black
○Can be connected to PS4, XBOX360, switch and other mainstream game consoles
○Can be connected to mainstream TV box and digital camera (display only)
Support multiple system display
○Support raspbian, Kali Linux, Ubuntu, Kodi, win10 IOT and other systems, touch free drive
○Support win7/8/10/11 and other systems, touch drive free
Passed CE and ROHS certification
Key and Interface Function Description
Product Size
Connect to Raspberry Pi
How to Use
Please click following picture to view user manual

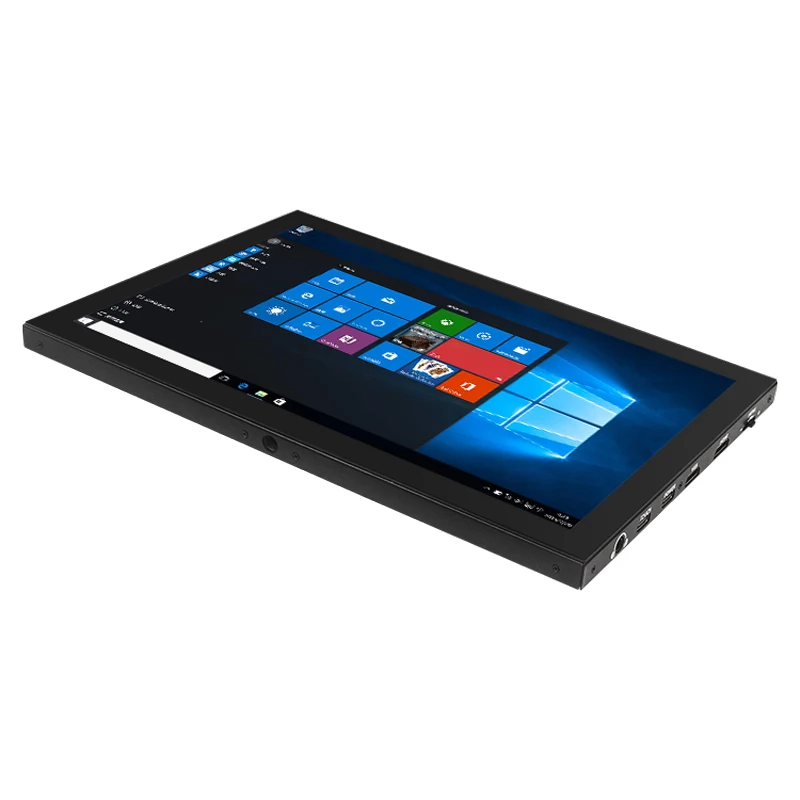

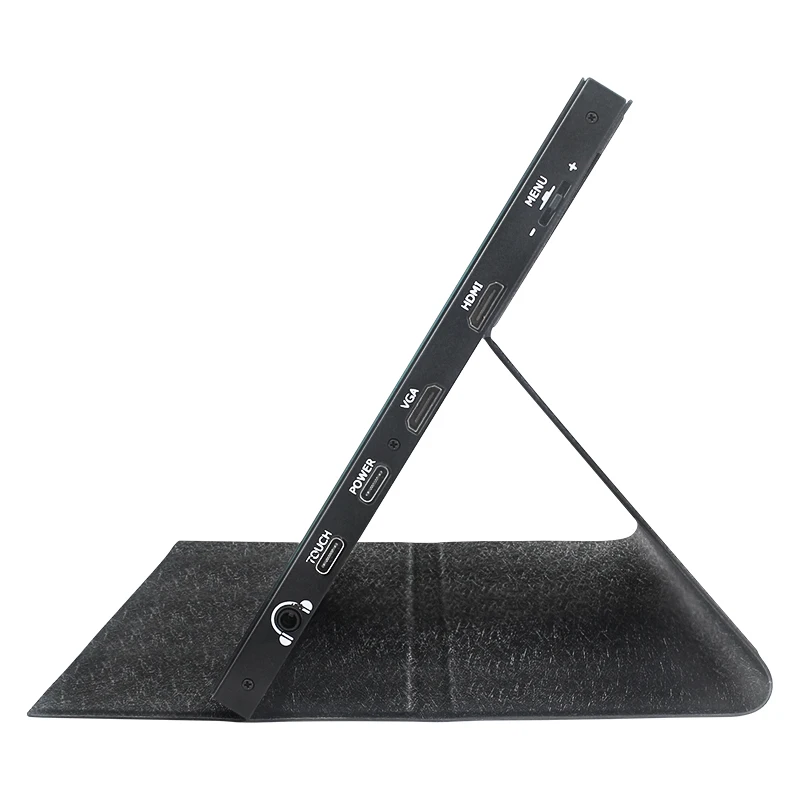

1280×800 (Option 5 & Option 6)
Feature
Own shell
○Hard iron shell
10.1inch IPS full Angle display
○The viewing Angle is large
○true color
○Dynamic picture quality is excellent
1280X800 Resolution
○HD Vision
○Display is very delicate
○Software settings, resolution can be increased to 1920X1080
New touch panel
○Tempered glass touch panel
○Hardness up to 6H, more durable and more scratch resistant
High sensitivity capacitive touch screen
○Accurate touch
○Supports up to 5 touch points
HDMI-compatible and VGA video input interfaces
○High definition video display
audio output
○Stereo dual speaker output shock sound
○3.5mm external audio interface
Multifunctional leave Switch
○Support brightness and volume adjustment
○Support menu settings
○Supports HDMI/VGA video signal switching
Support multiple device access
○Can connect to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black, etc
○Can connect to mainstream game consoles such as PS4, Xbox360, Switch, etc
○Can connect to mainstream TV boxes and digital cameras (display only)
Supports multiple system displays
○Support systems such as Raspbian, Kali Linux, Ubuntu, Kodi, Win10 IOT, and touch free drive
○Support Win7/8/10/11 and other systems, touch free drive

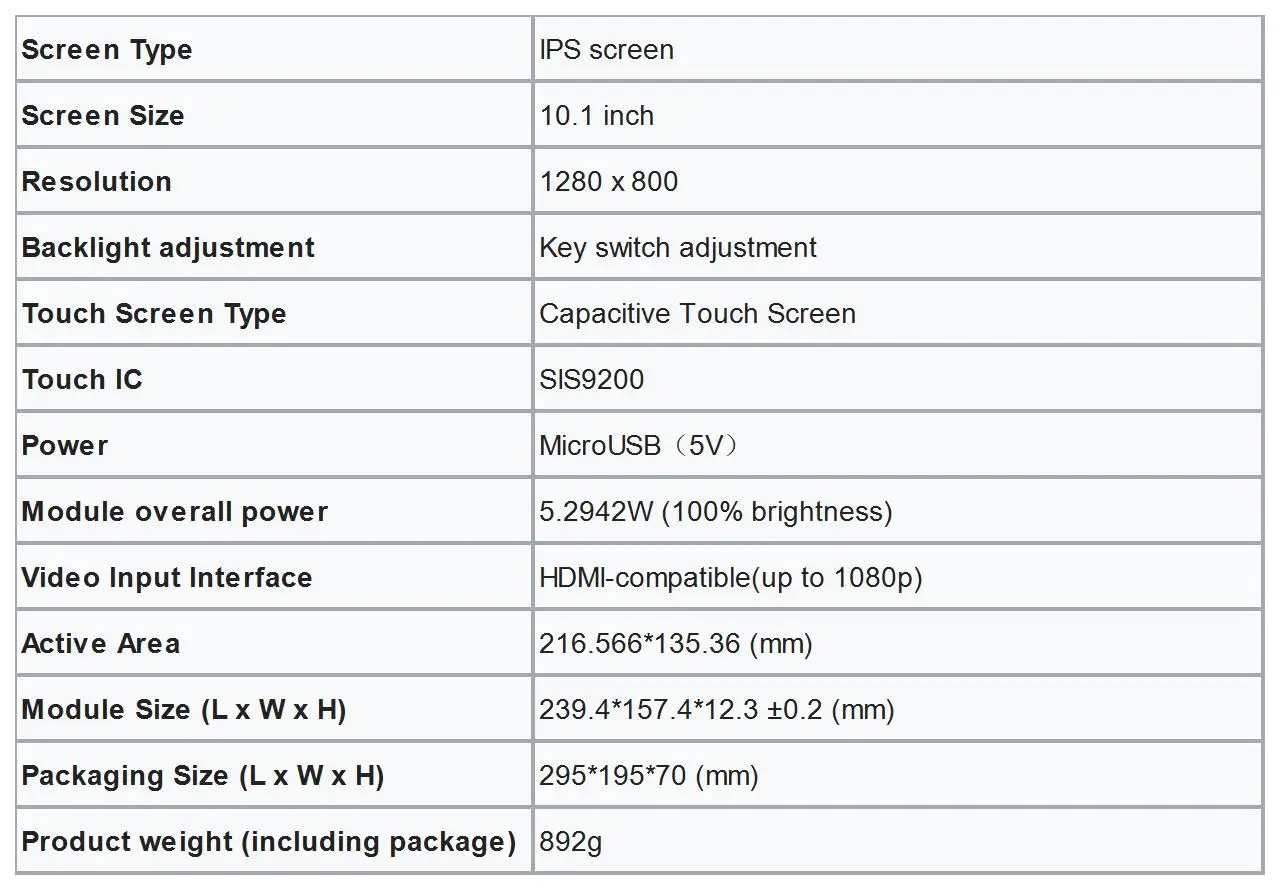

Specification
1. Panel Type IPS
2. Panel Size 10.1 inch
3. Resolution 1280 x 800(RGB) (pixels)
4. Active Area 216.55(W) x 135.36(H) (mm)
5. Number of Colors(Max) 16.7M
6. Pixel Pitch 0.1692 x 0.1692 (mm)
7. View Angle ALL 0’ CLOCK
8. Luminance(TYP) 250 cd/m2
9. Contrast Ratio(TYP) 1000
10. Backlight Type White LED
11. Backlight Voltage(TYP) 9.0V
12. Backlight Current(TYP) 180mA
13. Operation Temperature -10~50(℃)
14. Storage Temperature -20~60(℃)
15. Backlight Adjustment Leave switch adjustment
16. Volume Adjustment Leave switch adjustment
17. Touch Screen Type Capacitive Touch Screen
18. Touch IC GT911
19. Touch Screen Size 241.30(W) x 160.00(H) (mm)
20. Touch Screen Visual Area 217.34(W) x 136.00(H) (mm)
21. Power Voltage 5V
22. Speaker Power 8Ω 2W x 2
23. Total Power 6.15W (100% brightness, 0% volume)，9W(100% brightness, 100% volume)
24. Video Input Interface Mini HDMI & VGA
25. Audio Output Interface 3.5mm Audio Interface and Stereo speakers
26. Power Interface Type-C
27. Touch Output Interface Type-C
28. Outline Size 242.50(W) x 161.20(H) x 10.70(T)(mm)
29. Package size 295(W) x 195(H) x 70(T) (mm)
30. Weight(including package) 938(g)

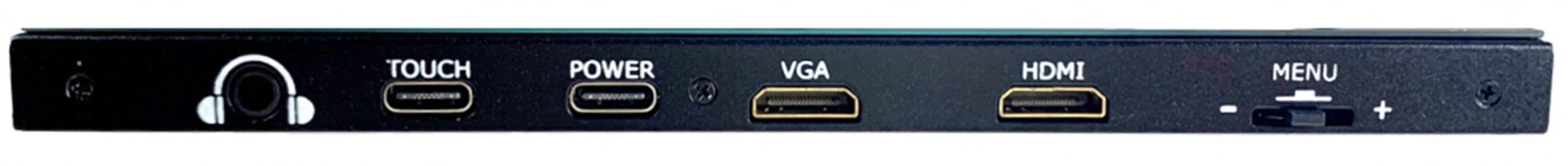

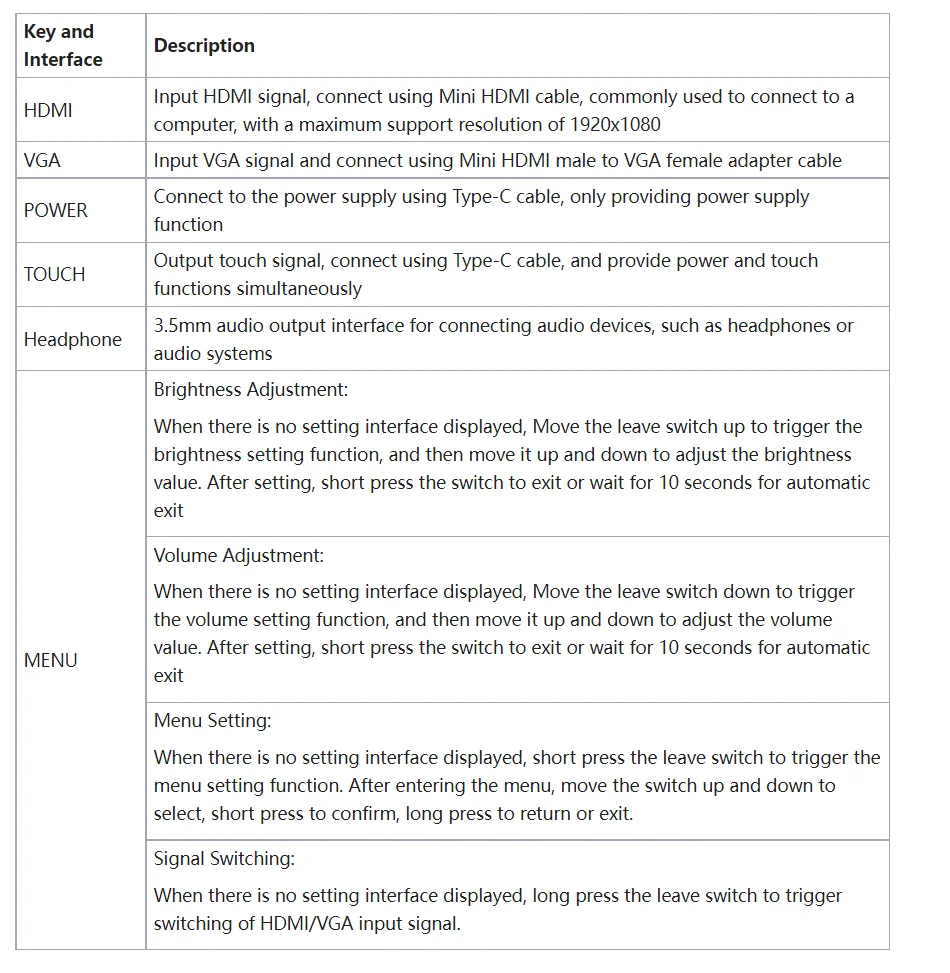

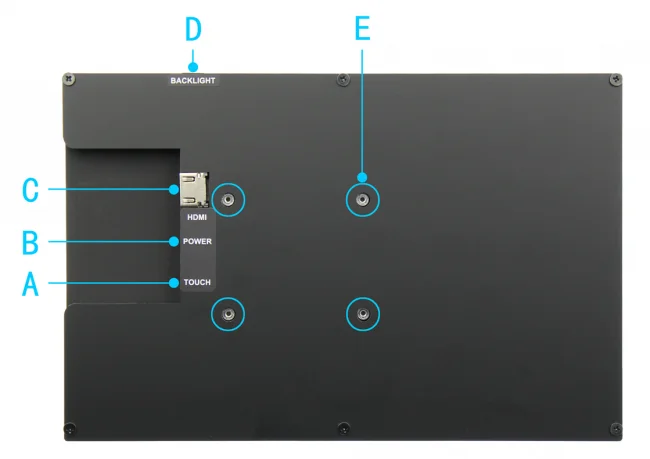

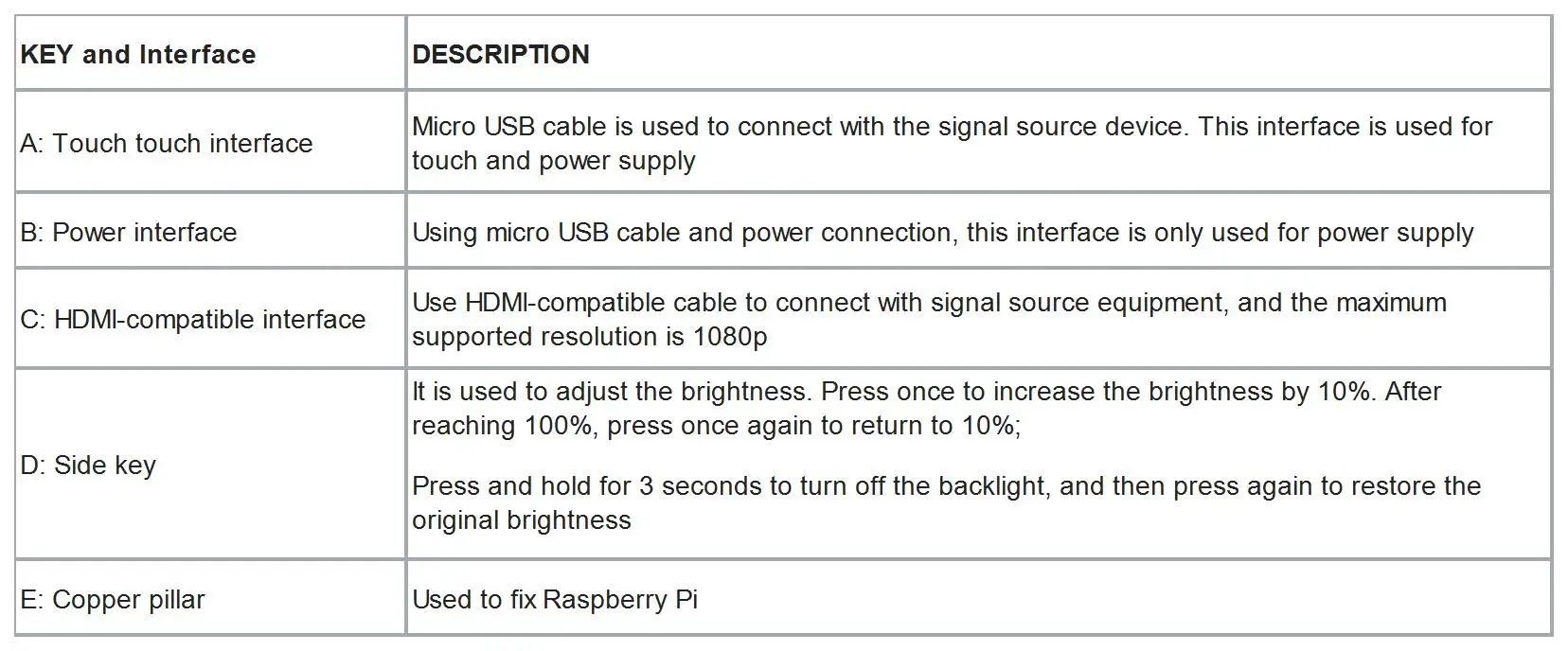

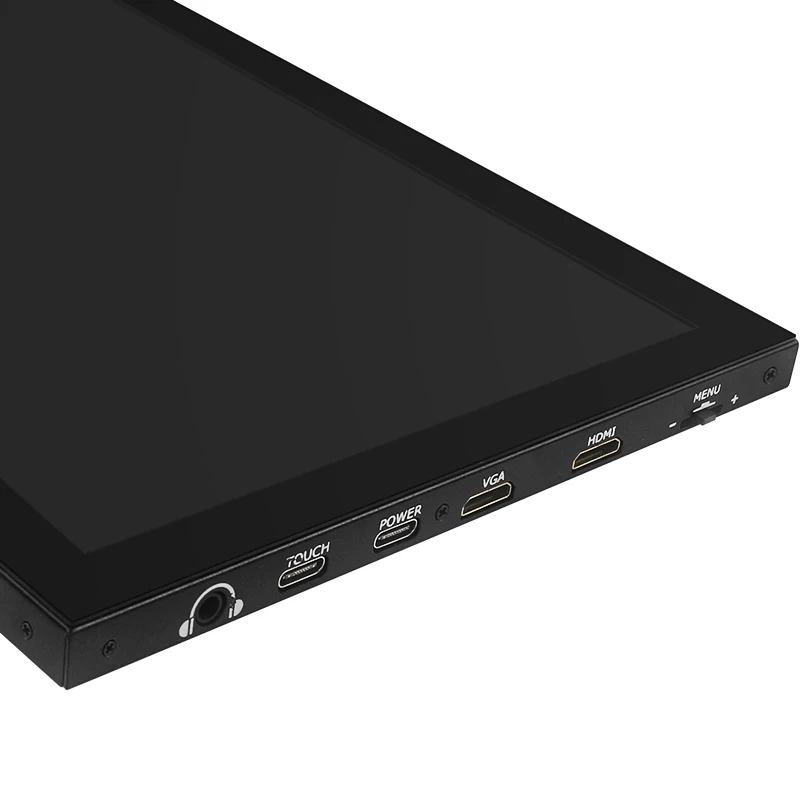

Key and Interface Function Description

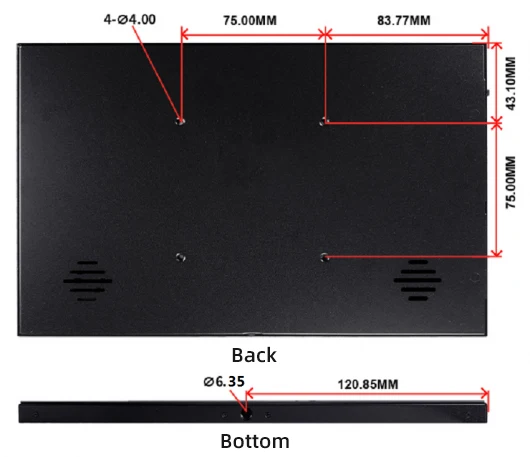

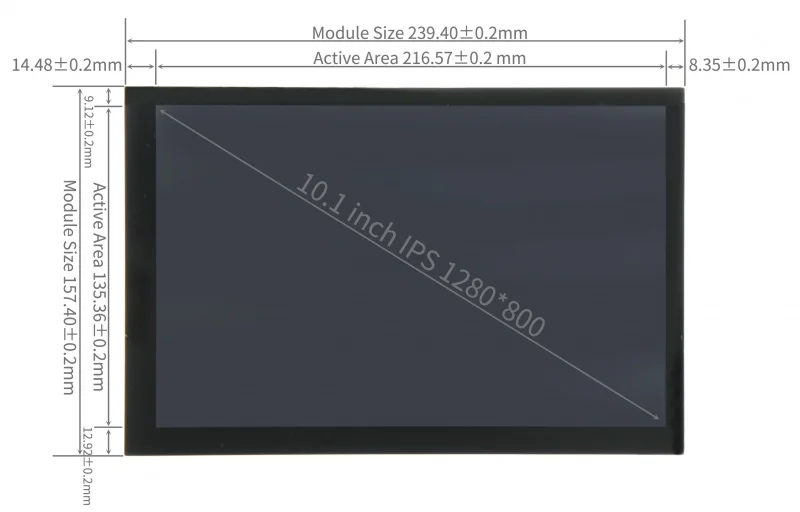

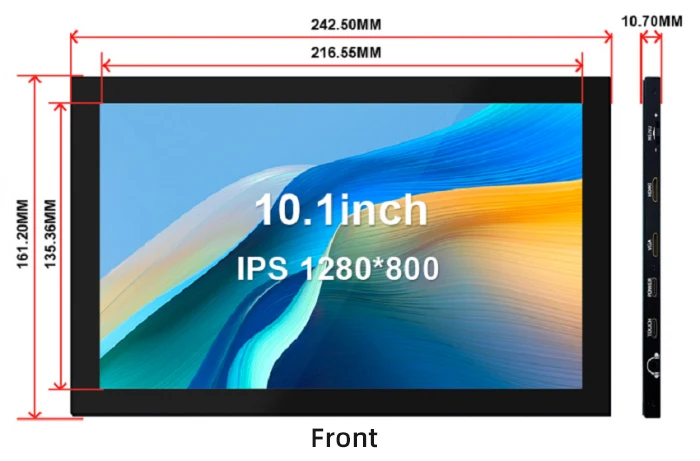

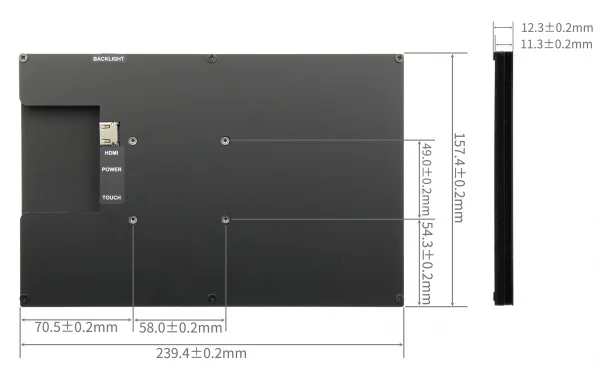

Dimension

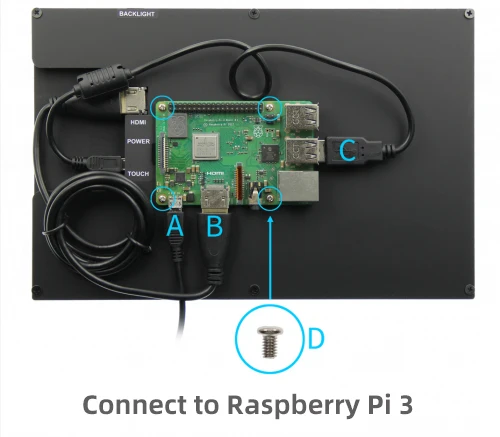

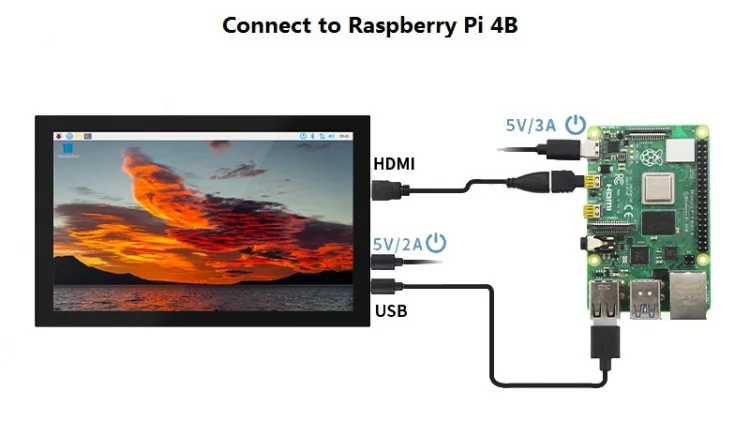

Connect to Raspberry Pi

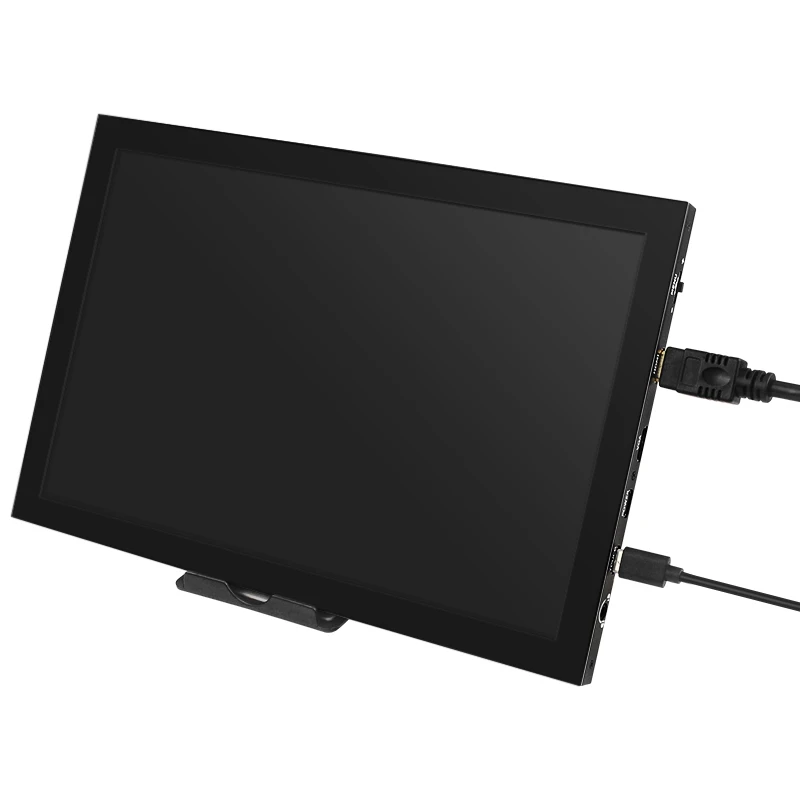

Work as HDMI-compatible touch monitor
This product can be used as the HDMI-compatible touch monitor of Windows computer, only need to connect HDMI-compatible interface and TOUCH interface, can normally display and support up to five points touch.

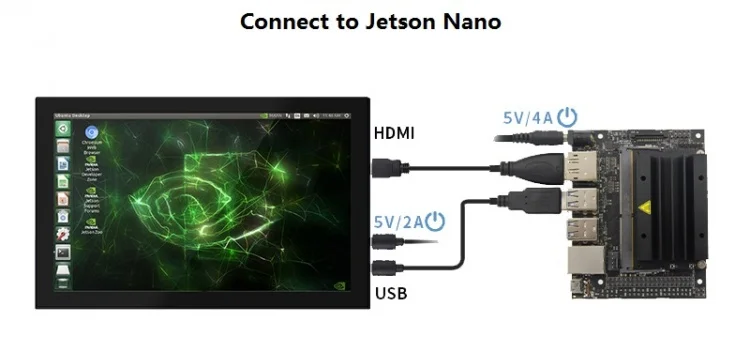

Connect to Jetson Nano
How to Use

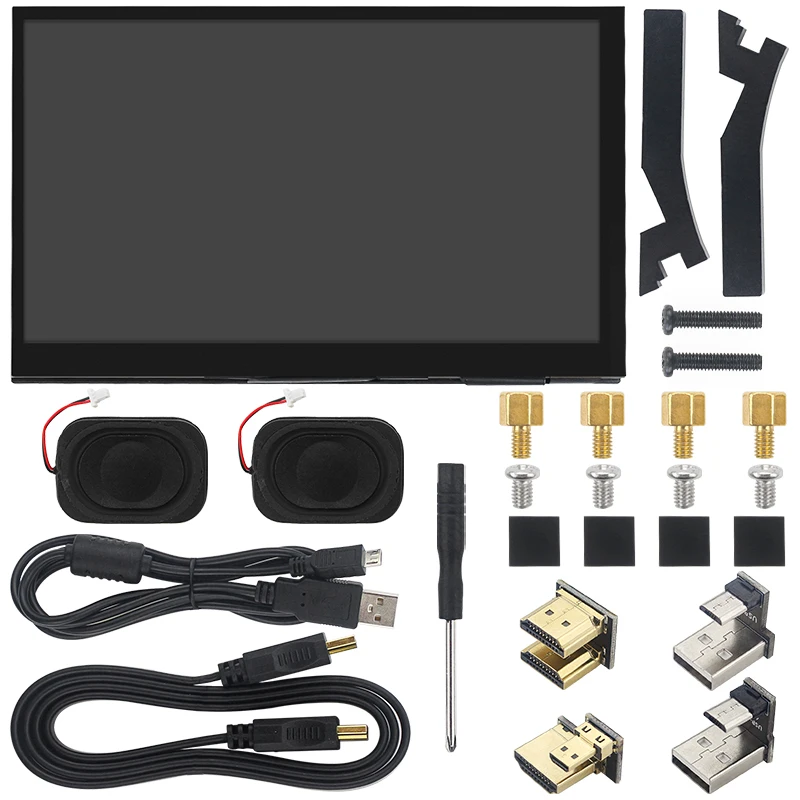

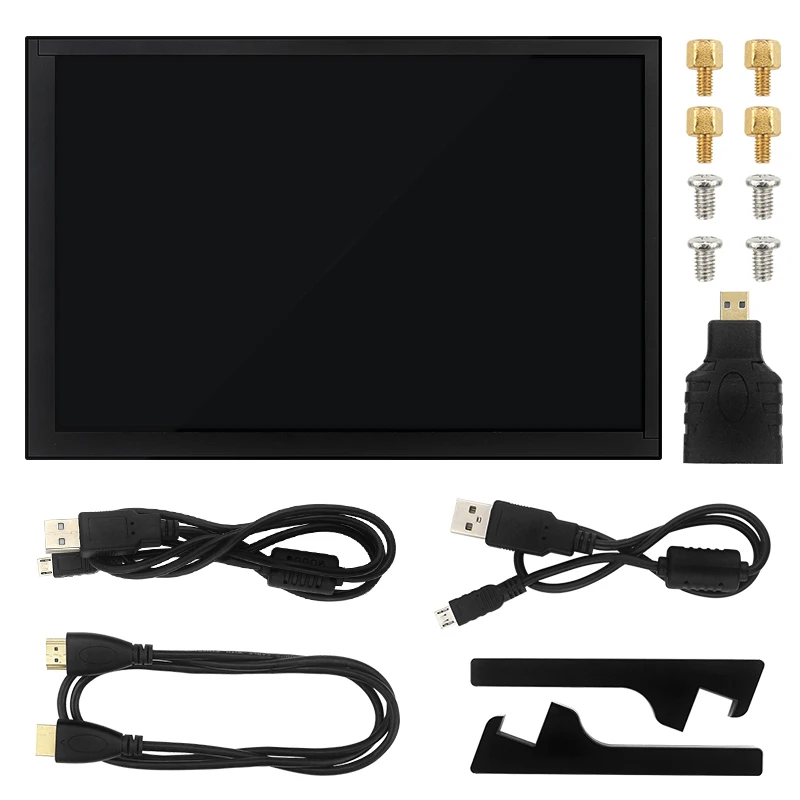

Packing List:
Option 1:
1 x 10.1 inch IPS Touch Screen
2 x Holder Feet
1 x USB to Micro USB Cable
1 x HDM-compatible to HDMI-compatible Cable
1 x HDMI-compatible to Micro HDMI-compatible Conterter
1 x HDMI-compatible to HDMI-compatible Conterter
2 x USB to Micro USB Converter
1 x Screwdriver
1 set x Screws and Nuts
2 x Speakers
(not include Raspberry Pi board)
Option 3
1 x 10.1 inch IPS Touch Screen (1280×800)
2 x Holder Feet
1 x USB to Micro USB Cable
1 x HDM-compatible to HDMI-compatible Cable
1 x HDMI-compatible to Micro HDMI-compatible Conterter
1 x HDMI-compatible to HDMI-compatible Conterter
2 x USB to Micro USB Converter
1 x Screwdriver
1 set x Screws and Nuts
(not include Raspberry Pi board)

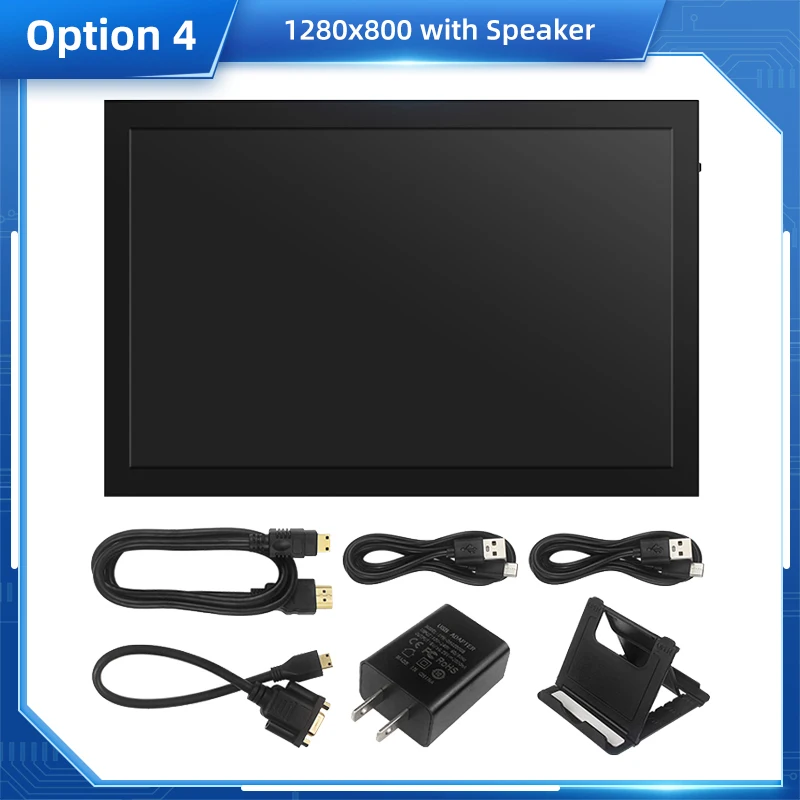

Option 4
1 x 10.1 Inch Touch Screen (1280×800)
1 x HDMI-compatible to Mini HDMI-compatible Cable
2 x USB Cable
1 x Mini HDMI-compatible to VGA Cable
1 x Plastic Holder

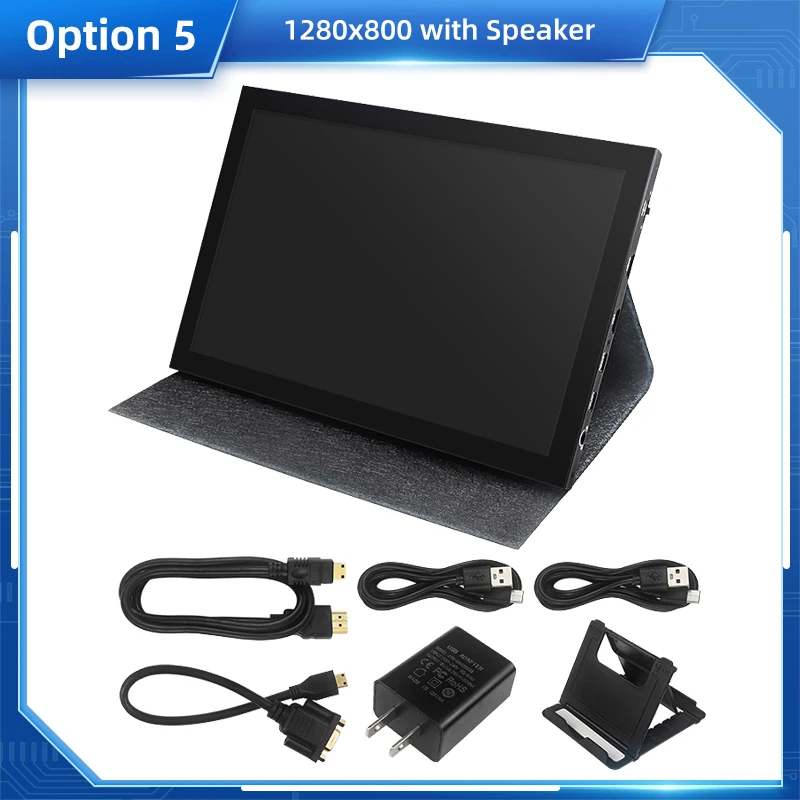

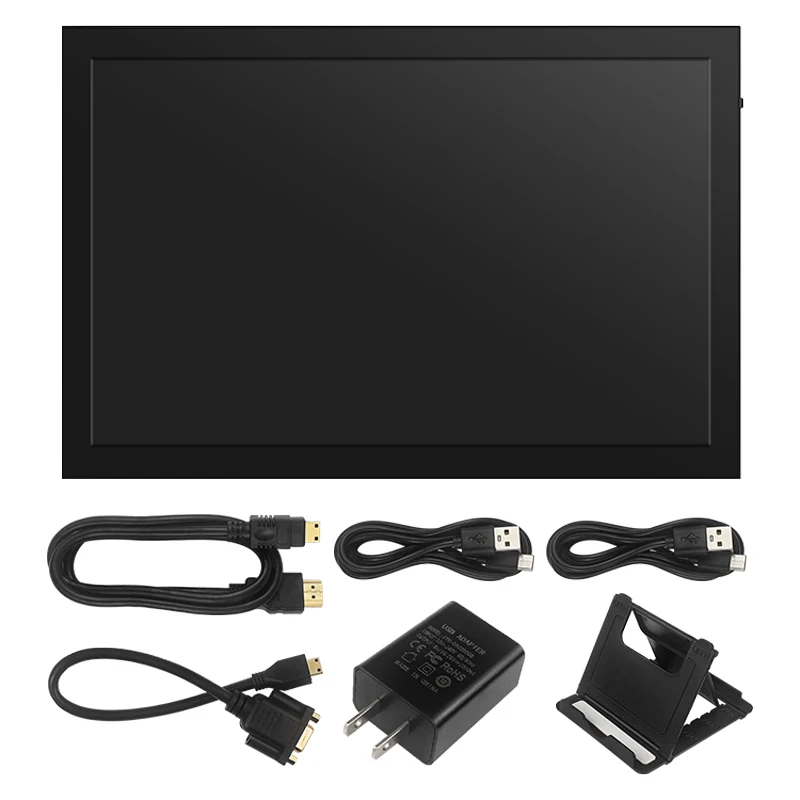

Option 5
1 x 10.1 Inch Touch Screen (1280×800)
1 x HDMI-compatible to Mini HDMI-compatible Cable
2 x USB Cable
1 x Mini HDMI-compatible to VGA Cable
1 x Plastic Holder
1 x Leather Protective Cover Bracket
FAQ
1. Question: Does the 10.1 inch screen need the extra power supply when I use it for Raspberry Pi ?
Answer: You need not use extra power supply for the 10.1 inch screen when use it for Raspberry Pi. The USB cable between 10.1 inch screen and USB port of Raspberry Pi can supply enough power for it. Connect the USB cable to the “touch” port on the screen, it can provide touch function and power at the same time.
2. Question: When Iuse the micro HDMI to HDMI-compatible adapter for Raspberry Pi 4, the screen can not work.
Answer: Please make sure you plug the HDMI port to HDMI slot on the screen totally in.
3. Question: Why the screen can not work ?
Answer: Please make sure you connect all cable well (refert to the production picture in the description). Then make sure you configure the “config” txt in the micro sd card.
